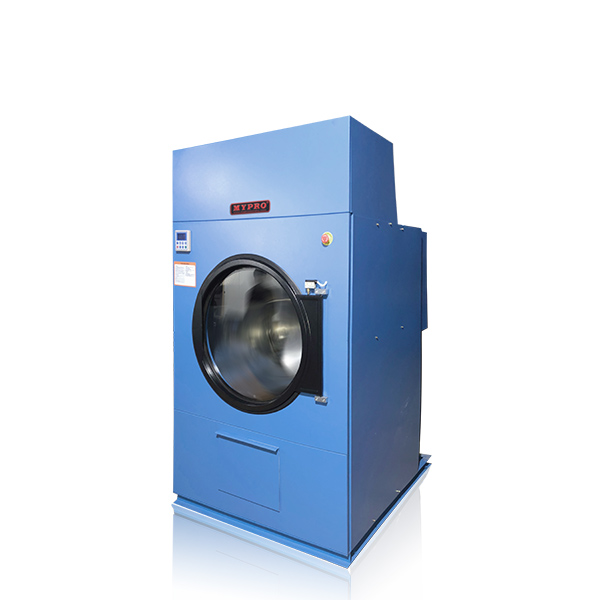

1.Using computer specially designed for dryer, five sets of presetting programs, easy for operation.
2.Using two-motor driving, two-stage belt transmission, with forward and reversal rotation function, increasing drying efficiency.
3.Large volume inner drum, high-density ventilating perforations in the rotation cage, ensuring that the heat permeates the linen
to fully dry the linen during a shortest period of time.
TECHNICAL SPECIFICATIONS | |||||||||
HG-15 | HG-20 | HG-25 | |||||||
Rated Capacity | kg | 15 | 20 | 25 | |||||
Diameter | mm | ф 750 | ф 800 | ф940 | |||||
Depth | mm | 675 | 750 | 700 | |||||
Volume/Capacity | L/kg | 21.5 | 20 | 20 | |||||
Drum Speed | rpm | 35 | 32 | 30 | |||||
Weight | kg | 240 | 320 | 400 | |||||
Electric Heating Power | kW | 12 | 18 | 24 | |||||
Motor Power | kW | 0.35 | 0.55 | 0.75 | |||||
Fan Motor Power | kW | 0.35 | 0.55 | 0.75 | |||||
Way of Rotation | TWO WAY ROTATION | ||||||||
Heating | Electric/Steam/Gas | ||||||||
Power Supply | 220/380/415V /50/60HZ | ||||||||
Powder coating | ✔ | ||||||||
Stainless Panel | + | ||||||||
DIMENSIONS | |||||||||
Model / Size(mm) | L | W | H | ||||||
HG-15 | 1000 | 1050 | 1700 | ||||||
HG-20 | 1000 | 1150 | 2000 | ||||||
HG-25 | 1100 | 1200 | 2000 |
