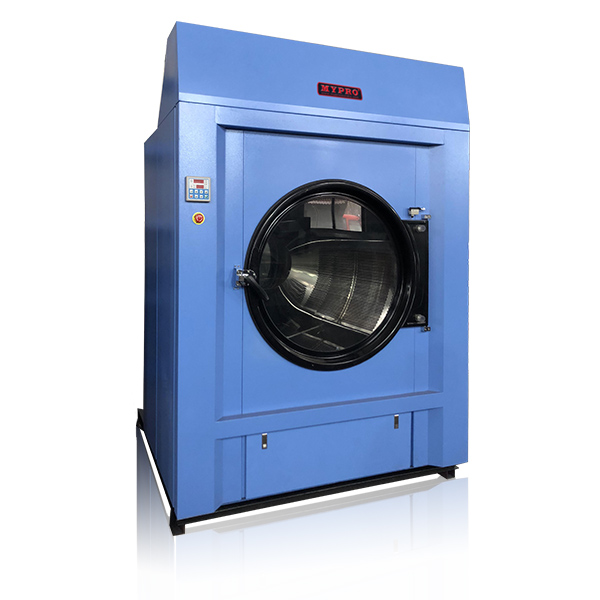

Industrial Tumble Dryer
- PRODUCT DETAIL
Take a closer look at our tumble dryers
1.Short drying time, stable, easy operate, an ideal for hotels,hospitals,enterprises and central laundry factories.
2.Large capacity, reversing stainless steel drying cylinder improves drying quality and reduces wrinkling.
3.Multifunction display control for easy use and training.
4.Five preset programs for easy operation.
5.Large door opening allows easy loading and unloading.
6.Three type heating,Gas Heating,Electric heating and Steam heating.
| TECHNICAL SPECIFICATIONS | |||||||||
| HG-35 | HG-50 | HG-100 | |||||||
| Rated Capacity | 35 kg | 50 kg | 100 kg | ||||||
| Diameter | ф 940 mm | ф 1150 mm | ф 1600 mm | ||||||
| Depth | 1000 mm | 890 mm | 980 mm | ||||||
| Drum Speed | 35 rpm | 32 rpm | 28 rpm | ||||||
| Air Exhausted | 2200 m³ /h | 3000 m³ /h | 6300 m³ /h | ||||||
| Motor Power | 0.75 kw | 1.1 kw | 2.2 kw | ||||||
| Fan Motor Power | 0.75 kw | 1.5 kw | 1.5*2 kw | ||||||
| Steam Pressure | 5-20 kpa | 5-20 kpa | 5-20 kpa | ||||||
| Gas Pressure | 0.25-0.4 Mpa | 0.25-0.4 Mpa | 0.25-0.4 Mpa | ||||||
| Electric Current | 84 A | 105 A | 157 A | ||||||
| Electric Heating | 32 kw | 40 kw | 60 kw | ||||||
| Gas Consumption | 3 m³ /h | 4.5 m³ /h | 6 m³ /h | ||||||
| Steam Consumption | 30 kg/h | 40 kg/h | 90 kg/h | ||||||
| Weight | 500 kg | 640 kg | 1500 kg | ||||||
| Way of Rotation | TWO WAY ROTATION | ||||||||
| Heating | Electric/Steam/Gas | ||||||||
| Power Supply | 380/415V/50/60HZ | ||||||||
| Powder coating | ✔ | ||||||||
| Stainless Panel | ＋ | ||||||||
| DIMENSIONS | |||||||||
| Model/Size(mm) | L | W | H | ||||||
| HG-35 | 1100 | 1580 | 2000 | ||||||
| HG-50 | 1320 | 1520 | 2200 | ||||||
| HG-100 | 1780 | 1900 | 2450 | ||||||
